Magnetic Mount for 12mm Laser Module

€29.89*

Prices incl. VAT. No shipping costs for orders over 100 Euro in the EU

Available, delivery time: 1-2 days

Product number: 70160246

Product information "Magnetic Mount for 12mm Laser Module"

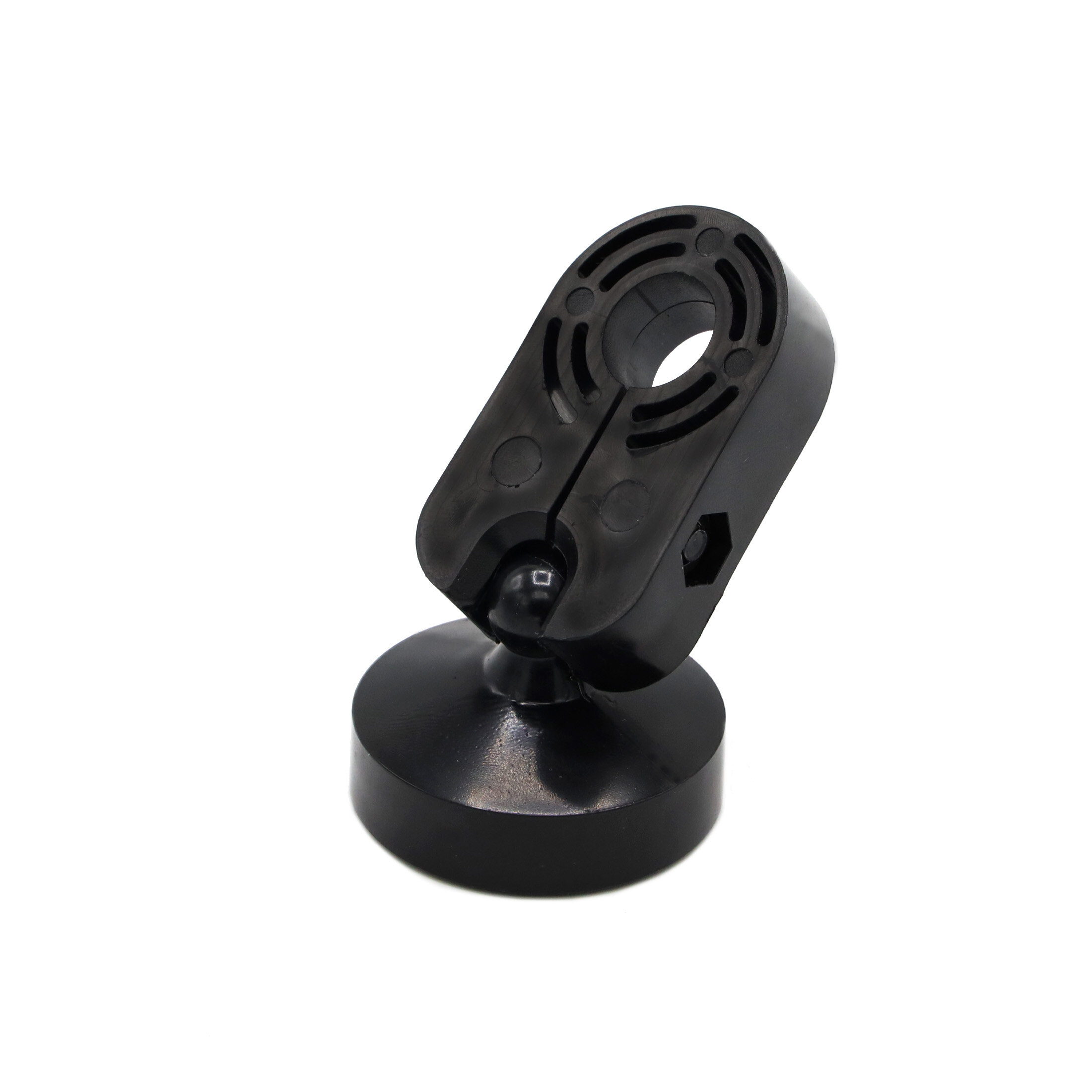

Ø12mm (36x62) Magnetic holder for 12mm laser module, diameter 36mm, height 62mm, plastic

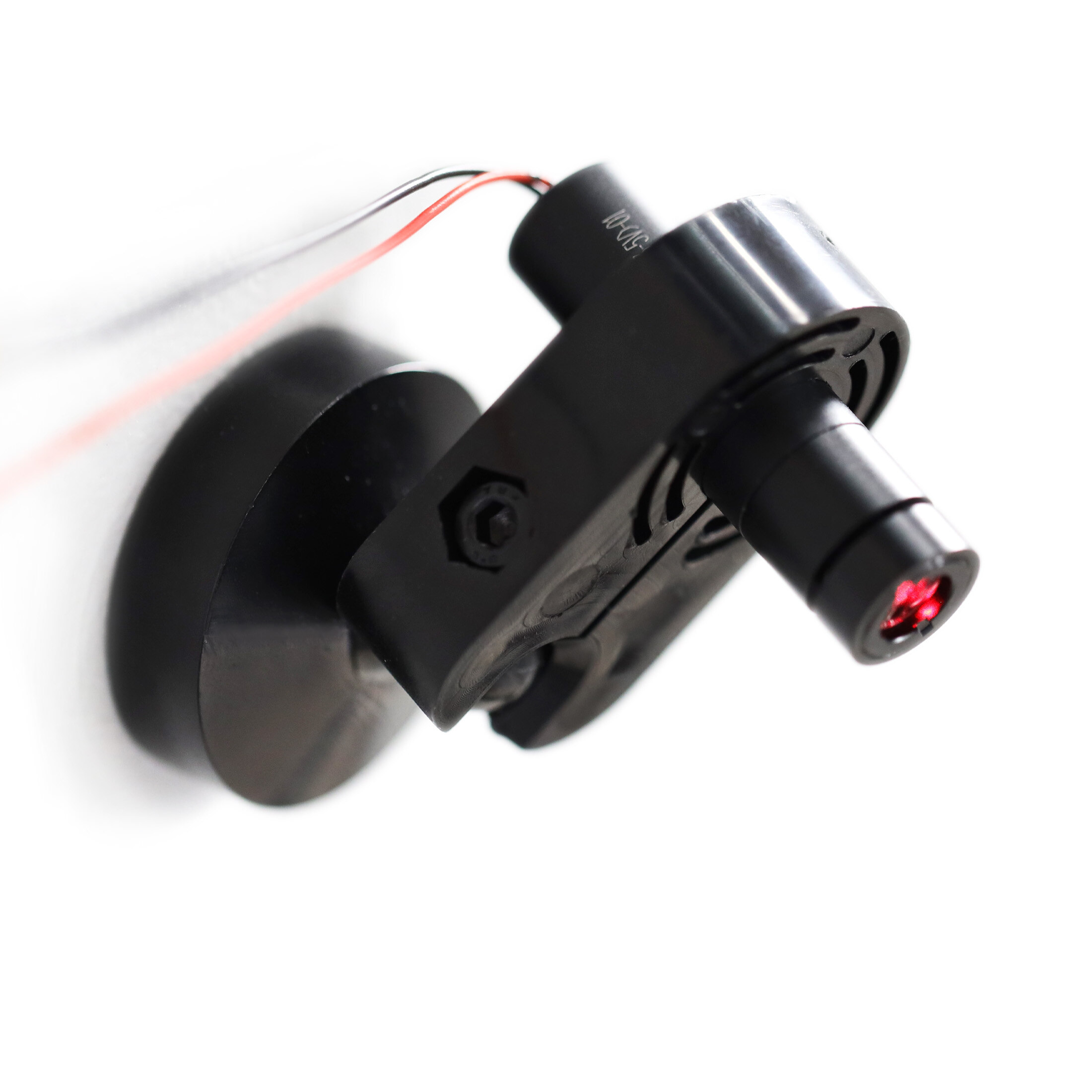

Inexpensive mount with a simple design for laser modules with a diameter of 12mm. The mount is adjustable in all degrees of freedom. The magnetic base allows for quick and easy secure attachment. The total height of the mount is 62 mm. A holding force of 6.5 kg is achieved.

Halterung für Lasermodule mit Durchmesser 12mm.

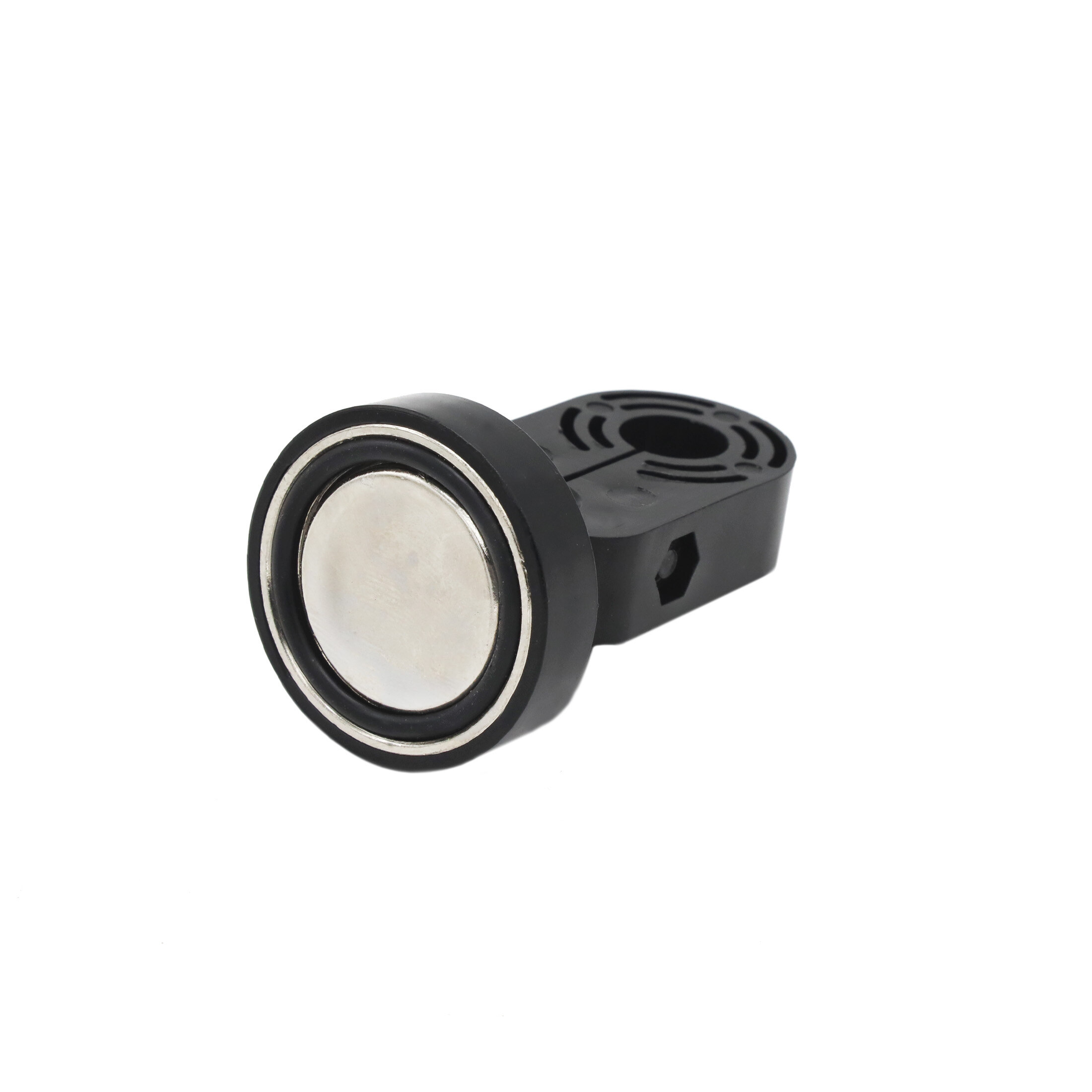

Befestigung: Magnetischer Standfuß mit einer Halterkraft von 6,5 kg
Das Lasermodul wird mit einer Klemmschraube in der Halterung fixiert.
Material: Kunststoff; Farbe: Schwarz
Preiswerte Halterung für viele Anwendungen

Accessesories

Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO

Main Data

EAN: 4055132022099
Customs tariff number: 90139080000

Technical Parameters

Operating Temperature: -20°C - 50 °C
Storage Temperature: -50°C - 70 °C

Mechanical Parameters

Material: Plastic
Housing Color: black
Weight: 20 g

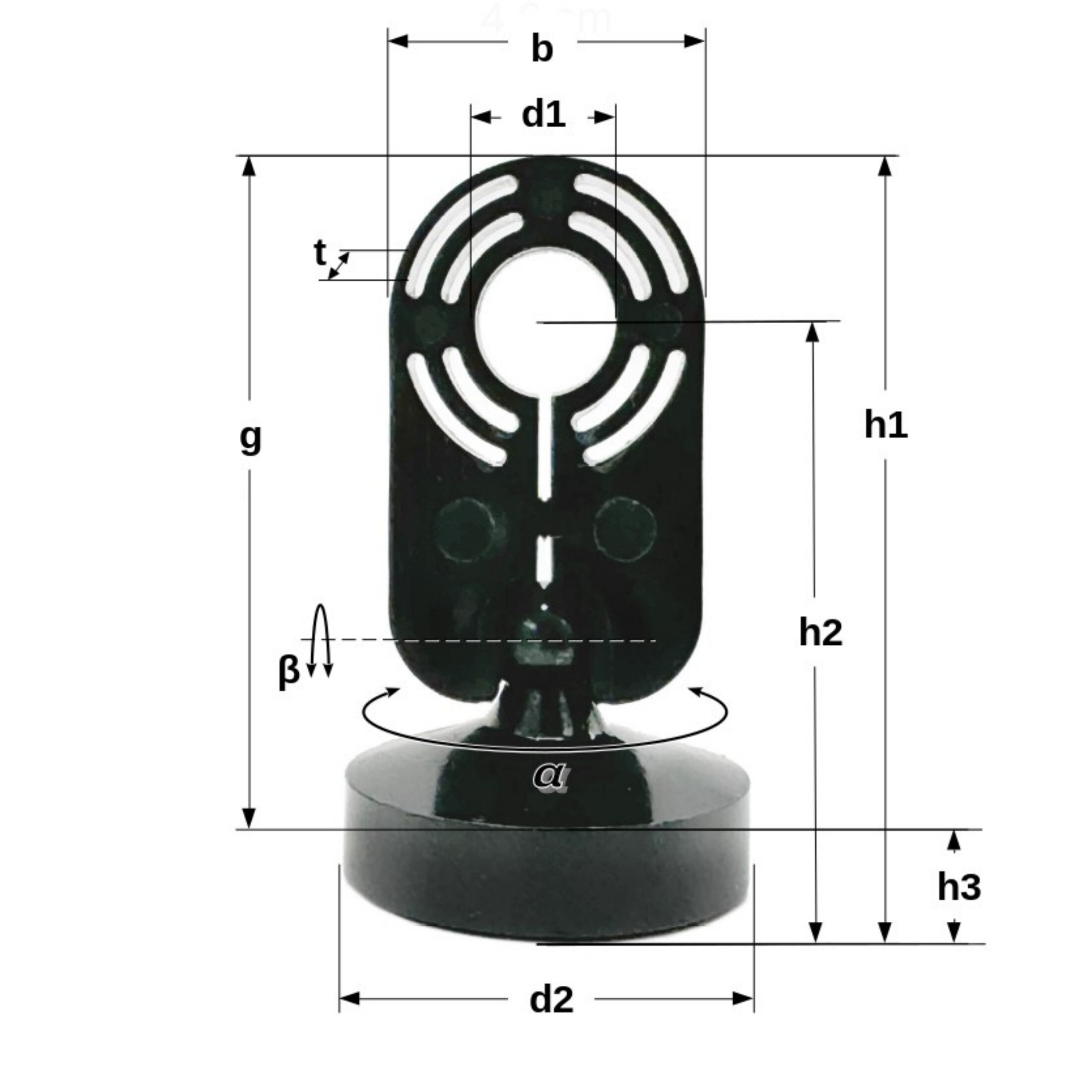

Mount Parameters

Total Height (h1): 62 mm
Height to Laseraxis (h2): 47 mm
Height of Base (h3): 17 mm
Mount Diameter (d1): Ø 12 mm
Diameter of Base (d2): Ø 36 mm
Width of Mount (b): 26 mm
Height of Mount (g): 45 mm
Depth of Mount (t): 12 mm
Angle of Rotation Alpha (α): 360 °
Angle of Rotation Beta (β): ± 180 °
