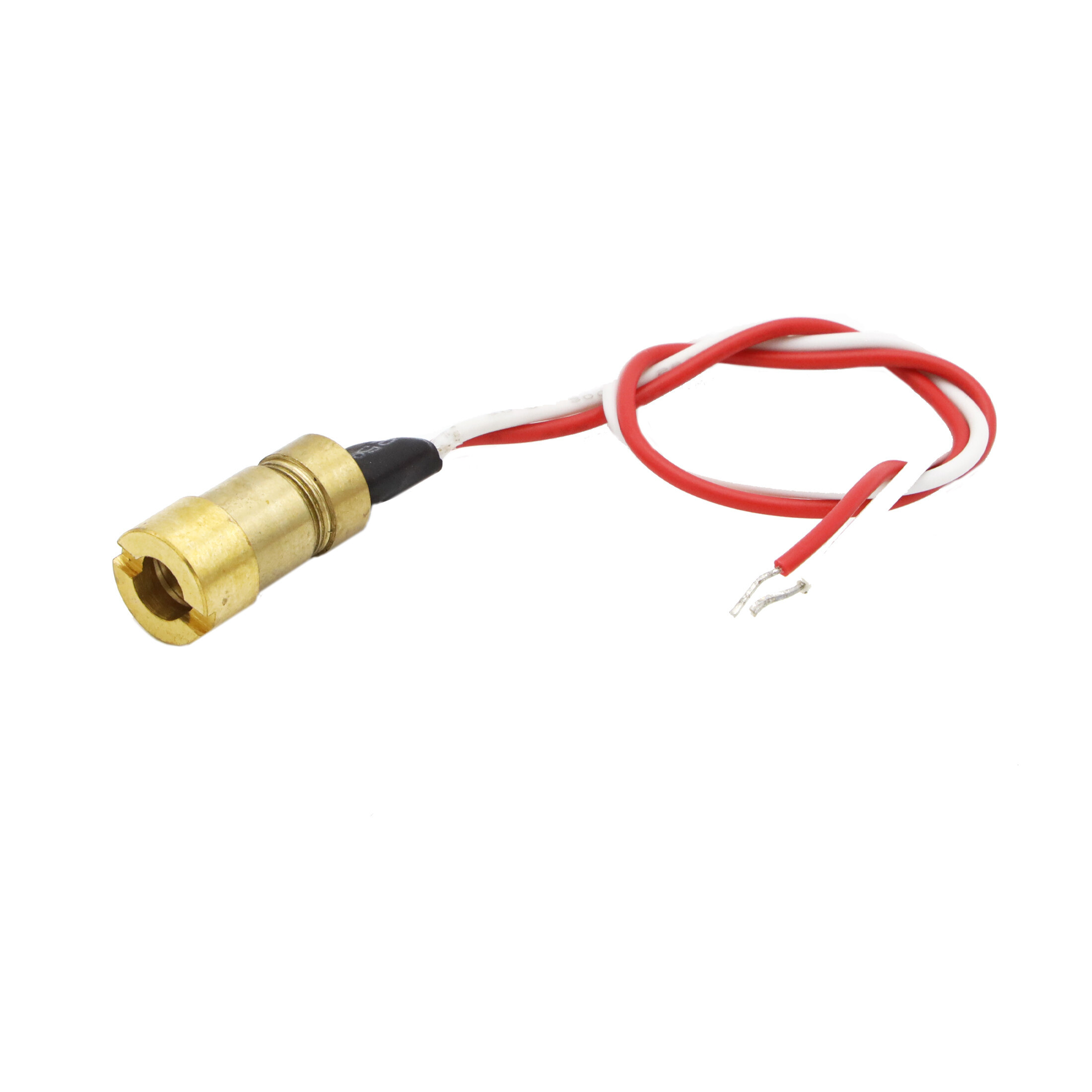

Linienlaser Strichlaser rot 650nm 5mW 4° 3VDC Messinggehäuse 9x25mm

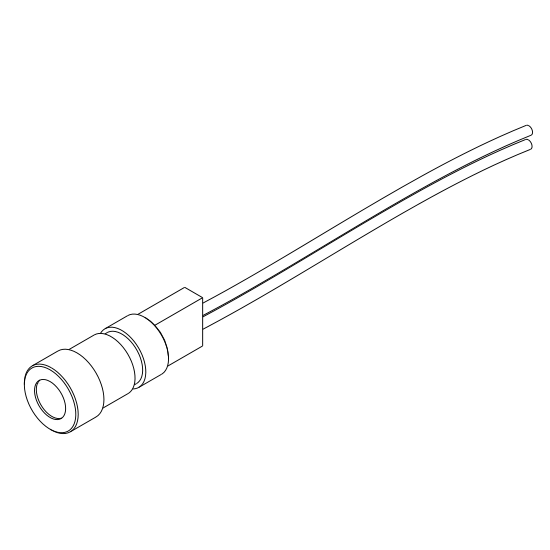

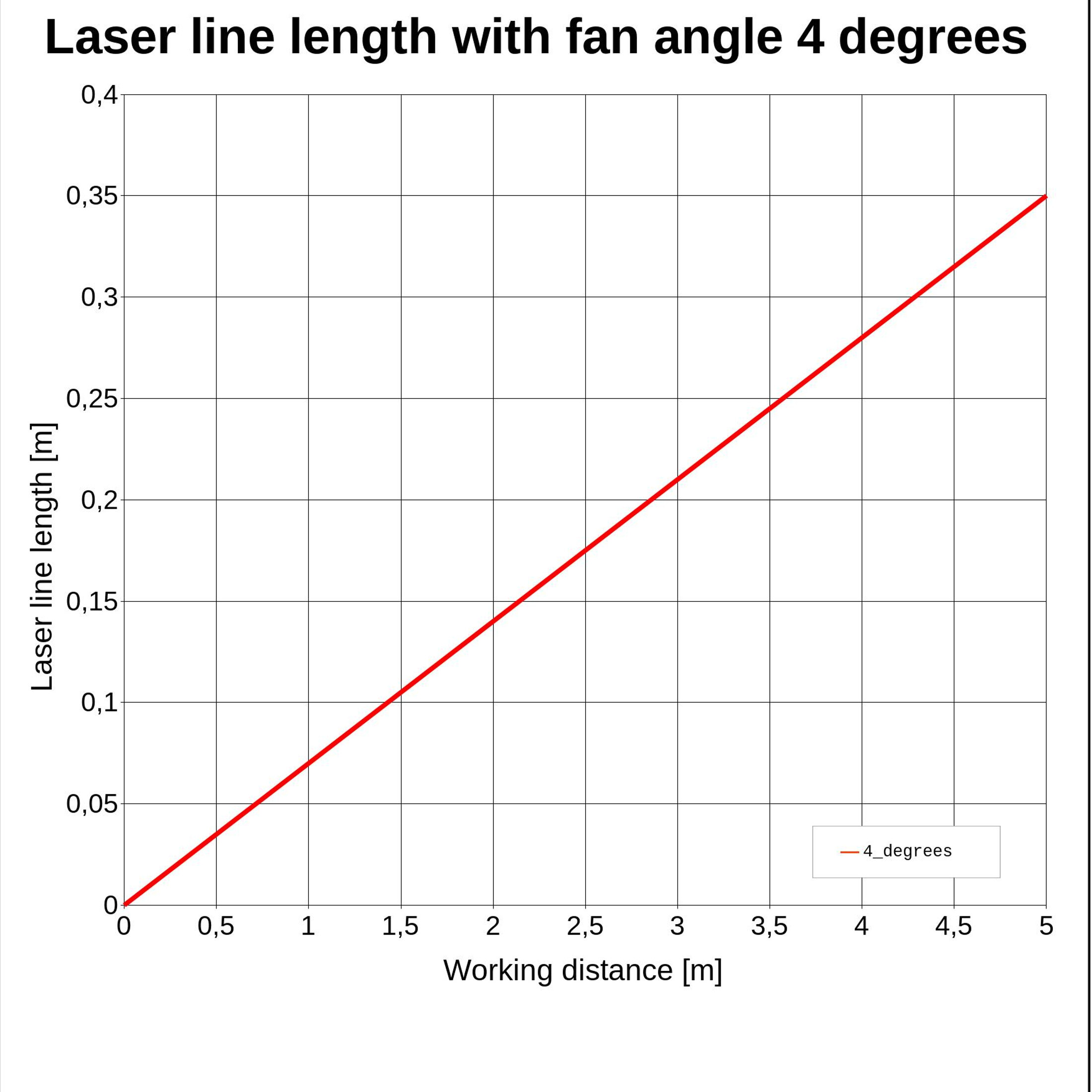

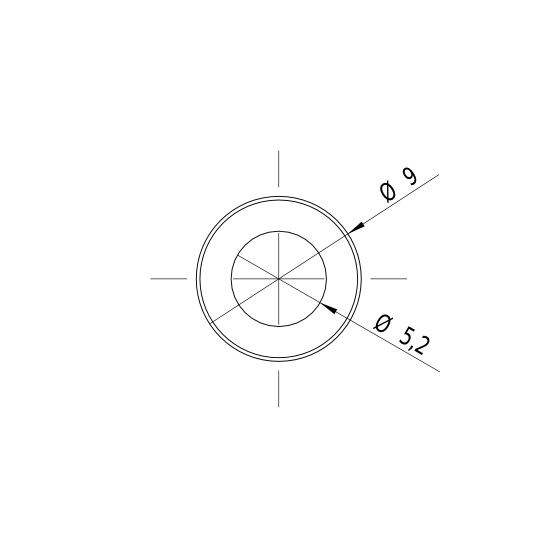

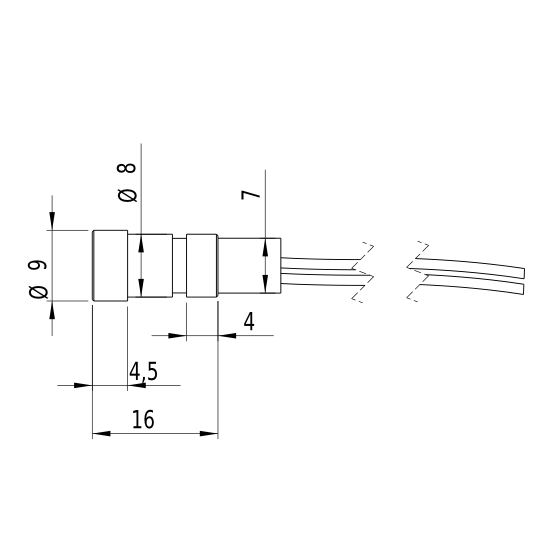

Line lasermodule, red, 635nm, 5mW, 4°, class 3R, focus 2m, 3V DC, 9x25mm The type LFL635-5-3(9x25)4DEG is a laser that projects a red laser line. This type of laser module with its wavelength of 635nm has an enhanced visibility over a comparable laser with 650nm wavelength. This diode laser module measures 9x25mm. The fan angle of 4° generates a laser line of 0.14m length at a working distance of 2m. The operating voltage is 3 volts. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class 3R. Operating Voltage 3 V DC Small package Protection lens Low cost Small fan angle Abstrahlcharakteristik: Linie, Liniendicke <2mm@2m Optische Leistung: 5mW (Laserklasse 3R); Fokus 2m Kompakte Bauform: 9x25mm; Öffnungswinkel: 4°; Achsabweichung: bis zu 3,0° Der Öffnungswinkel (4°) erzeugt, bei einem Arbeitsabstand von 2m, eine Laserlinienlänge von 0,14m. Für Anwendungen in z.B. Lasermarkierungssystemen, in Industrie, Handwerk, Hobby und dem Showbereich. Stromversorgung 3V. Zur Spannungsversorgung können Sie z.B. unser Picotronic Batteriepack 3V oder das Netzteil Picotronic LFNT-3 verwenden. Accessesories Magnetic Mount for Lasermodul 12mmØ9mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 9mm Magnetic Mount for Lasermodul 9mm09mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 9mm Bracket for Lasermodule 9mmØ9mm(25x67) Halterung-Ballhead für Lasermodule mit Durchmesser 9mm Mount for Lasermodul 9mmØ9mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 9mm Power supply 3V DC (1200mA)Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4260129041865 Warranty: 1 years Customs tariff number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Line Optical Power: 5 mW Laser Class: 3R Divergence: H - 1.0 mrad Fan Angle: 4 ° Line Thickness: <2mm@2m Operating Distance: 5 m Optics: acryl lense Laser technology: diode Focus: fixed (2000mm) Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 2.7 - 3.3, typ 3 V DC Operating Current: 20 - 55, typ 35 mA Cable color positive: red Cable color GND: white Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Mechanical Parameters Size: Ø9x25 mm Material: Brass Cable length: 100 mm Wire type: 26AWG, 0,14mm² Output Aperture: 5 mm Weight: 4.5 g

Line lasermodule, red, 635nm, 5mW, 90°, class 1, focus 1m, 3-5V DC, 9x20mm The type LFL635-5-5(9x20)90 is a laser that projects a red laser line. This type of laser module with its wavelength of 635nm has an enhanced visibility over a comparable laser with 650nm wavelength. This diode laser module measures 9x20mm. The fan angle of 90° generates a laser line of 2m length at a working distance of 1m. The operating voltage is 3 to 5 volts. This positioning laser is an universal tool for industry, hobby and trade. This module is laser class 1. Abstrahlcharakteristik: Linie, Liniendicke <1,2mm@1m; Laser mit 635nm besitzen eine bessere Sichtbarkeit als z.B. Laser mit 650nm. Ausgangsleitung: 1mW; Laserklasse 1; Fokus 1m Kompakte Bauform: 9x20mm; Öffnungswinkel: 90°; Achsabweichung: bis zu 3,0° Der Öffnungswinkel (90°) erzeugt, bei einem Arbeitsabstand von 1m, eine Laserlinienlänge von 2m. Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, der Robotertechnik und dem Showbereich. Spannungsversorgung 3V bis 5V. Zur Stromversorgung können Sie z.B. unser Netzteil Picotronic LFNT-3 verwenden. Accessesories Magnetic Mount for Lasermodul 12mmØ9mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 9mm Magnetic Mount for Lasermodul 9mm09mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 9mm Bracket for Lasermodule 9mmØ9mm(25x67) Halterung-Ballhead für Lasermodule mit Durchmesser 9mm Mount for Lasermodul 9mmØ9mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 9mm Power supply 3V DC (1200mA)Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4055132016784 Warranty: 1 years Customs tariff number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Line Optical Power: 5 mW Laser Class: 1 Divergence: H - 1.0 mrad Fan Angle: 90 ° Line Thickness: <1.2mm@1m Operating Distance: 2 m Optics: acryl lense Laser technology: diode Focus: fixed (1000mm) Electrical Parameters Operating Voltage: 2.8 - 5, typ 5 V DC Operating Current: 20 - 60, typ 40 mA Cable color positive: red Cable color GND: black Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Mechanical Parameters Size: Ø9x20 mm Material: Brass Cable length: 100 mm Wire type: 26AWG, 0,14mm² Output Aperture: 6 mm Weight: 6 g Stripping of wire: 5 mm Buy LFL635-5-5(9x20)90 on Amazon

Line lasermodule, red, 635nm, 5mW, 4°, class 2M, focus 2m, 3V DC, 9x20mm The type LFL635-5-3(9x20)4DEG is a laser that projects a red laser line. This type of laser module with its wavelength of 635nm has an enhanced visibility over a comparable laser with 650nm wavelength. This diode laser module measures 9x20mm. The fan angle of 4° generates a laser line of 0.14m length at a working distance of 2m. The operating voltage is 3 volts. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class 2M. Abstrahlcharakteristik: Linie, Liniendicke 3..4mm@2m Optische Leistung: Laserklasse 2M; Fokus 2m Kompakte Bauform: 9x20mm; Öffnungswinkel: 4°; Achsabweichung: bis zu 3,0° Der Öffnungswinkel (4°) erzeugt, bei einem Arbeitsabstand von 2m, eine Laserlinienlänge von 0,14m. Für Anwendungen in z.B. Lasermarkierungssystemen, der Robotertechnik und dem Bauteilpositionierung. Spannungsversorgung 3V. Zur Stromversorgung können Sie z.B. unser Picotronic Netzteil LFNT-3 verwenden. Accessesories Magnetic Mount for Lasermodul 12mmØ9mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 9mm Magnetic Mount for Lasermodul 9mm09mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 9mm Bracket for Lasermodule 9mmØ9mm(25x67) Halterung-Ballhead für Lasermodule mit Durchmesser 9mm Mount for Lasermodul 9mmØ9mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 9mm Power supply 3V DC (1200mA)Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4260129041940 Warranty: 1 years Customs tariff number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Line Optical Power: 5 mW Laser Class: 2M Divergence: I - 1.5 mrad Fan Angle: 4 ° Line Thickness: 3..4mm@2m Operating Distance: 2 m Optics: acryl lense Laser technology: diode Focus: fixed (2000mm) Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 2.7 - 4, typ 3 V DC Operating Current: 25 - 70, typ 45 mA Cable color positive: red Cable color GND: black Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Mechanical Parameters Size: Ø9x20 mm Material: Brass Cable length: 90 mm Wire type: LIH-F/125 0,34/1,6 Output Aperture: 5 mm Weight: 4.5 g Buy LFL635-5-3(9x20)4DEG on Amazon

Line lasermodule, red, 650nm, 5mW, 90°, class 1, focus 1m, 3-12V DC, 9x20mm The type LFL650-5-12(9x20)90 is a laser that projects a red laser line. This laser module emits light of the wavelength 650nm. The diode laser module measures 9x20mm. The fan angle of 90° generates a laser line of 2m length at a working distance of 1m. The operating voltage is 3 to 12 volts. This positioning laser is an universal tool for industry, hobby and trade. It reduces the effort that has to be put into positioning and alignment tasks. This module is laser class 1. Laser Class 1 Operating Voltage 3-12V DC Uniform line thickness Low cost Abstrahlcharakteristik: Linie, Liniendicke <1,2mm@1m Optische Leistung: Laserklasse 1; Fokus 1m Kompakte Bauform: 9x20mm; Öffnungswinkel: 90°; Achsabweichung: bis zu 3,0° Der Öffnungswinkel (90°) erzeugt, bei einem Arbeitsabstand von 1m, eine Laserlinienlänge von 2m. Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, in Industrie und Handwerk. Spannungsversorgung 3V bis 12V. Zur Stromversorgung können Sie z.B. unser Netzteil Picotronic LFNT-3 verwenden. Accessesories Magnetic Mount for Lasermodul 12mmØ9mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 9mm Magnetic Mount for Lasermodul 9mm09mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 9mm Bracket for Lasermodule 9mmØ9mm(25x67) Halterung-Ballhead für Lasermodule mit Durchmesser 9mm Mount for Lasermodul 9mmØ9mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 9mm Power supply 3V DC (1200mA)Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4260129041001 Warranty: 1 years Customs tariff number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Line Optical Power: 5 mW Laser Class: 1 Divergence: H - 1.0 mrad Fan Angle: 90 ° Line Thickness: <1.2mm@1m Operating Distance: 1 m Optics: acryl lense Laser technology: diode Focus: fixed (1000mm) Electrical Parameters Operating Voltage: 3 - 12 V DC Operating Current: 10 - 25, typ 15 mA Cable color positive: red Cable color GND: black Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Mechanical Parameters Size: Ø9x20 mm Material: Brass Cable length: 100 mm Wire type: 26AWG, 0,14mm² Output Aperture: 6 mm Weight: 6 g Stripping of wire: 5 mm Buy LFL650-5-12(9x20)90 on Amazon

Line lasermodule, red, 650nm, 5mW, 60°, class 1, focus 1m, 3-12V DC, 9x20mm The type LFL650-5-12(9x20)60 is a laser that projects a red laser line. The laser module emits light of the wavelength 650nm. Using a special optics the laser module produces a sharp line without using rotating polygon mirrors or motors. The controller electronic and the built in optics are integrated into the housing. The size of the housing amounts to 9x20mm. The operation range of the laser is 1 m. This line laser can be applied e.g. in laser levels, laser marking systems, robotics, and laser entertainment area. This laser module can be operated without series resistor or control electronics. It can be simply attached to existing power supplies e.g. power supply units of small electrical devices or 12V vehicle power supply networks. The focus is optimized for a operation range of 1 m. A optimal focused laser line with a line width of approximate 1,1m is displayed at this distance. Caused by laser classification 1, no TÜV-registration is necessary. The laser can be applied e.g. in discotheque events and it can be mounted in tools without any problems. Abstrahlcharakteristik: Linie, Liniendicke <1,2mm@1m Optische Leistung: Laserklasse 1; Fokus 1m Kompakte Bauform: 9x20mm; Öffnungswinkel: 60°; Achsabweichung: bis zu 3,0° Der Öffnungswinkel (60°) erzeugt, bei einem Arbeitsabstand von 1m, eine Laserlinienlänge von 1,1m. Für Anwendungen in z.B. Laserwasserwaagen, Lasermarkierungssystemen, in Industrie und Handwerk. Spannungsversorgung 3V bis 12V. Zur Stromversorgung können Sie z.B. unser Netzteil Picotronic LFNT-3 verwenden. Accessesories Magnetic Mount for Lasermodul 12mmØ9mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 9mm Magnetic Mount for Lasermodul 9mm09mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 9mm Bracket for Lasermodule 9mmØ9mm(25x67) Halterung-Ballhead für Lasermodule mit Durchmesser 9mm Mount for Lasermodul 9mmØ9mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 9mm Power supply 3V DC (1200mA)Netzteil, Ausgang: 3V DC, offene Kabelenden, Betriebsspannung: 100-240V AC Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development Main Data EAN: 4260129041018 Warranty: 1 years Customs tariff number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 40 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Line Optical Power: 5 mW Laser Class: 1 Divergence: H - 1.0 mrad Fan Angle: 60 ° Line Thickness: <1.2mm@1m Operating Distance: 1 m Optics: acryl lense Laser technology: diode Focus: fixed (1000mm) Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 3 - 12, typ 3 V DC Operating Current: 10 - 30, typ 20 mA Cable color positive: red Cable color GND: black Power Supply: Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Mechanical Parameters Size: Ø9x20 mm Material: Brass Cable length: 100 mm Wire type: 26AWG, 0,14mm² Output Aperture: 6 mm Weight: 6 g Buy LFL650-5-12(9x20)60 on Amazon

This red line laser is perfect for all tabletop games. The bright and visible laser line visualizes the line of sight clearly - for an exact and fair gameplay. The new line laser XL650-5 is the perfect visual aid for all true tabletop fans and therefore a valuable aid for a fair and exact gameplay. The laser is packaged in a compact, sturdy metal tin and fits comfortably in any figure case. Regardless of whether orcs, demons, undead or hobbits are fighting, the laser line illuminates the entire table perfectly and is also clearly recognizable in bright ambient light. The tabletop laser XL650-5 can be used safely thanks to laser class 1 - you can use it without hesitation and without any legal requirements. Three replacement packs with batteries and the sturdy metal box for safe storage at tournaments, competitions or at home complete the package. Made for Tabletop games Laser Class 1 With battery Compact size Uniform line thickness Perfekte Sichthilfe für alle echten Tabletop Fans Tabletop-Laser XL650-5 ist dank Laserklasse 1 gefahrenfrei Inkl. 3 Ersatzpacks mit Batterien Die Laserlinie leuchtet den kompletten Tisch perfekt aus und ist auch bei hellem Umgebungslicht genau zu erkennen Laser ist in einer kompakten, stabilen Metalldose verpackt und passt bequem in jeden Figurenkoffer Accessesories Magnetic Mount for Lasermodul 15mm15mm(48x86) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm Magnetic Mount for Lasermodul 15mmØ15mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 15mm Mount for Lasermodul 15mmØ15mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 15mm Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO Main Data EAN: 4260129042534 Warranty: 1 years Customs tariff number: 90132000000 Technical Parameters Lifetime: > 3,000 h Operating Temperature: -20°C - 50 °C Storage Temperature: -40°C - 80 °C Optical Parameters Beam Shape: Line Optical Power: 5 mW Laser Class: 1 Divergence: H - 1.0 mrad Fan Angle: 90 ° Line Thickness: <1.2mm@1m Operating Distance: 1 m Optics: acryl lense Laser technology: diode Focus: fixed (1000mm) Electrical Parameters Potential of Housing: VDD(+) Operating Voltage: 3 - 4.5 V DC Operating Current: 20 mA Battery: LR44/AG13 alkaline battery, 1.5V Battery count: 2 Mechanical Parameters Size: Ø15x68 mm Material: aluminium Output Aperture: 6 mm Housing Color: black Weight: 80 g Buy XL650-5 on Amazon
