Doe laser, red, 635 nm, 18 °, 5 mW, 5 V DC, Ø10x22 mm, Laser Class 2M, Focus fixed (400mm), Cable l…
€115.89*
Available, delivery time: 1-2 days
Product information "Doe laser, red, 635 nm, 18 °, 5 mW, 5 V DC, Ø10x22 mm, Laser Class 2M, Focus fixed (400mm), Cable l…"
DOE Laser Module 635nm, red, 5mW, DOE 41 LINES - PC - 8x1,2mm 63°, 5V DC, Ø10x22mm, Laser Class 2M with DOE-DE-R285, Focus 400mm
Accessesories
Magnetic Mount for Lasermodul 10mm
10mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 10mm
Magnetic Mount for Lasermodul 12mm
Ø10mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 10mm
Mount for Lasermodul 10mm
Ø10mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 10mm
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4055132006907
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 3,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: DOE
- Optical Power: 5 mW
- Laser Class: 2M
- Divergence: H - 1.0 mrad
- Fan Angle: 18 °
- Size of Laserdot: <1mm@0.4m
- Operating Distance: 0.4 m
- Optics: acryl lense
- Laser technology: Single Mode Diode
- Protection Lens: no
- Focus: fixed (400mm)
Electrical Parameters
- Potential of Housing: VDD(+)
- Operating Voltage: 3 - 6, typ 5 V DC
- Operating Current: 25 - 65, typ 45 mA
- Cable color positive: red
- Cable color GND: black
Mechanical Parameters
- Size: Ø10x22 mm
- Material: Brass
- Cable length: 100 mm
- Wire type: 26AWG, 0,14mm²
- Output Aperture: 6 mm
- Weight: 8.5 g

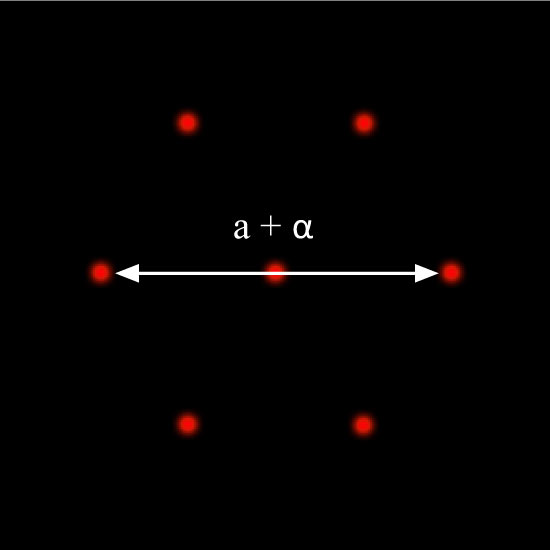

DOE
- Alpha: 6.1 °
- a: 10.7 mm
- Diameter (without holder): 8 mm
- Width (without Holder): 1.2 mm
- Material: PC
