€125.90*
Available, delivery time: 1-2 days
Product information "Doe laser, red, 635 nm, 5 mW, 5 V DC, Ø10x22 mm, Laser Class 2M, Focus fixed, Cable length 100 mm, …"
DOE Laser Module 635nm, red, 5mW, DOE CROSS - PC - 8x1,2mm 37°, 5V DC, Ø10x22mm, Laser Class 2M with DOE-DE-R248, with connector 2.5mm / 9mm
Accessesories
Magnetic Mount for Lasermodul 10mm
10mm(48x86) MAGNETIC-MOUNT-PRO für Lasermodule mit Durchmesser 10mm
Magnetic Mount for Lasermodul 12mm
Ø10mm(45x75) MULTI-MOUNT-MAGNETIC für Lasermodule mit Durchmesser 10mm
Mount for Lasermodul 10mm
Ø10mm(45x75) MULTI-MOUNT für Lasermodule mit Durchmesser 10mm
Picotronic accessory PICO-LENS-CLEANING-PEN-MICRO
certified Laser Safety Eyewear PICO-LPG-635-660 according to DIN EN 207, suitable for red wavelengths >630 - 700 nm, comfortable fit over prescription glasses or alone, side-shields for wide field of view, for laserwelding, lasercutting, lasermarking, laserengraving, cosmetic applications, Research and Development
Main Data
- EAN: 4055132006112
- Warranty: 1 years
- Customs tariff number: 90132000000
Technical Parameters
- Lifetime: > 3,000 h
- Operating Temperature: -20°C - 50 °C
- Storage Temperature: -40°C - 80 °C
Optical Parameters
- Beam Shape: DOE
- Optical Power: 5 mW
- Laser Class: 2M
- Divergence: H - 1.0 mrad
- Optics: acryl lense
- Laser technology: diode
- Protection Lens: yes
- Focus: fixed
Electrical Parameters
- Potential of Housing: VDD(+)
- Operating Voltage: 3 - 6, typ 5 V DC
- Operating Current: 25 - 65, typ 45 mA
- Connector: 2.5 mm DC plug (GND pole inner)
- Cable color positive: red
- Cable color GND: black
Mechanical Parameters
- Size: Ø10x22 mm
- Material: Brass
- Cable length: 100 mm
- Wire type: 26AWG, 0,14mm²
- Output Aperture: 6 mm
- Weight: 8.5 g
- Connector Pin VDD: outer pole
- Connector Pin GND: inner pole

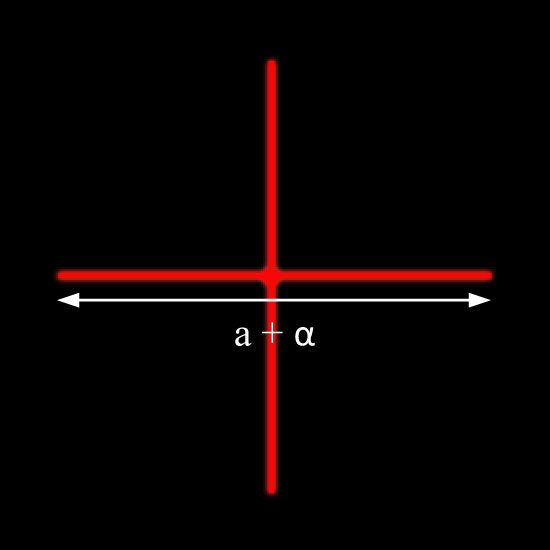

DOE
- Alpha: 36 °
- a: 66 mm
- Diameter (without holder): 8 mm
- Width (without Holder): 1.2 mm
- Material: PC
Buy DOE248-635-5-6(10x22)-CON on Amazon
| Optische Diodenleistung: | 5 mW |
|---|
