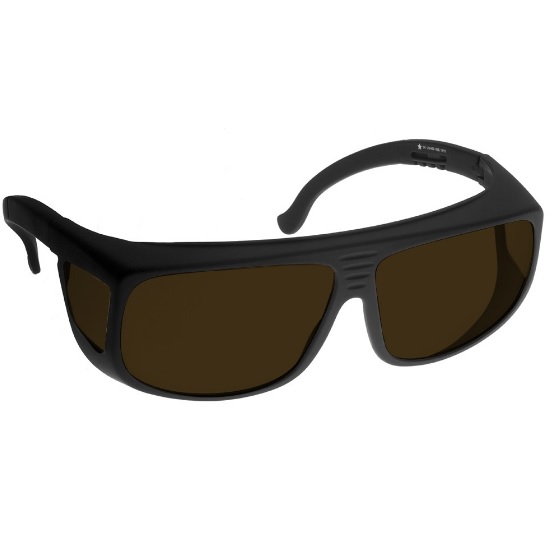

certified Laser Safety Eyewear PICO-LPG-RGB according to DIN EN 207, suitable for blue and green wa…

Working with laser systems of the laser class 3R and higher can cause serious damage to the human eye. The human eye can be permanently damaged by direct or indirect laser radiation. Injuries on the retina usually occur in the range of 400-1400nm, while defects on the cornea or lens occur in the UV range (190-400nm). Therefore, it is essential to protect the eyes with the help of a suitable laser safety goggles. The laser safety goggles certified to the valid standard DIN EN 207 (full protection) comply with the legal regulations and protect the eyes against dangerous laser radiation. Laser goggles and their filters are designed to absorb the specific energy of the laser. Therefore, the optimum safety goggles must be selected explicitly for the required wavelength range, the radiation peak value and the required optical density. Of course, the daylight transmission, the field of vision and the wearing comfort of the frame also play a decisive role. The version of the laser safety glasses prevents lateral penetration of the laser beam. Wavelength: 180-315nm, lb rating D LB7 + IR LB4 Wavelength: >315-532nm, lb rating DIRM LB6 Especially suitable for: Laser BLUE 405nm, BLUE 445nm, BLUE 450, GREEN 520nm und GREEN 532nm

For laserwelding, lasercutting, lasermarking, laserengraving, research and development and cosmetic applications (Please note the wavelengthrange!)

• Complete protection
• Comfortable fit over glasses or alone
• Adjustable temples and side-shields for wide field of view
• CE Certified EN 207
• With Picotronic Logo imprint

• Vollschutz
• universelle, bequeme Passform über Brille o. allein, verstellbare Brillenbügel, Seitenschutz für breites Sichtfeld
• CE-zertifiziert
• Wellenlänge: 180-315nm, Schutzstufen D LB7 + IR LB4 Wellenlänge: >315-532nm, Schutzstufe DIRM LB6
• Besonders geeignet für: Laser BLAU 405nm, BLAU 445nm, BLAU 450, GRÜN 520nm und GRÜN 532nm

Main Data

• EAN: 4055132018627
• Customs tariff number: 90049010000

Technical Parameters

• Operating Temperature: -50°C - 85 °C
• Storage Temperature: -50°C - 80 °C

Optical Parameters

• LB Rating: 190-534 6+, 620-650 1.5+, 625-647 2.5+, 632-642 3.5+
• Lens Color: Blue

Mechanical Parameters

• Size: 145x144x50 mm
• Material: Polymer
• Housing Color: black
• Weight: 10 g
